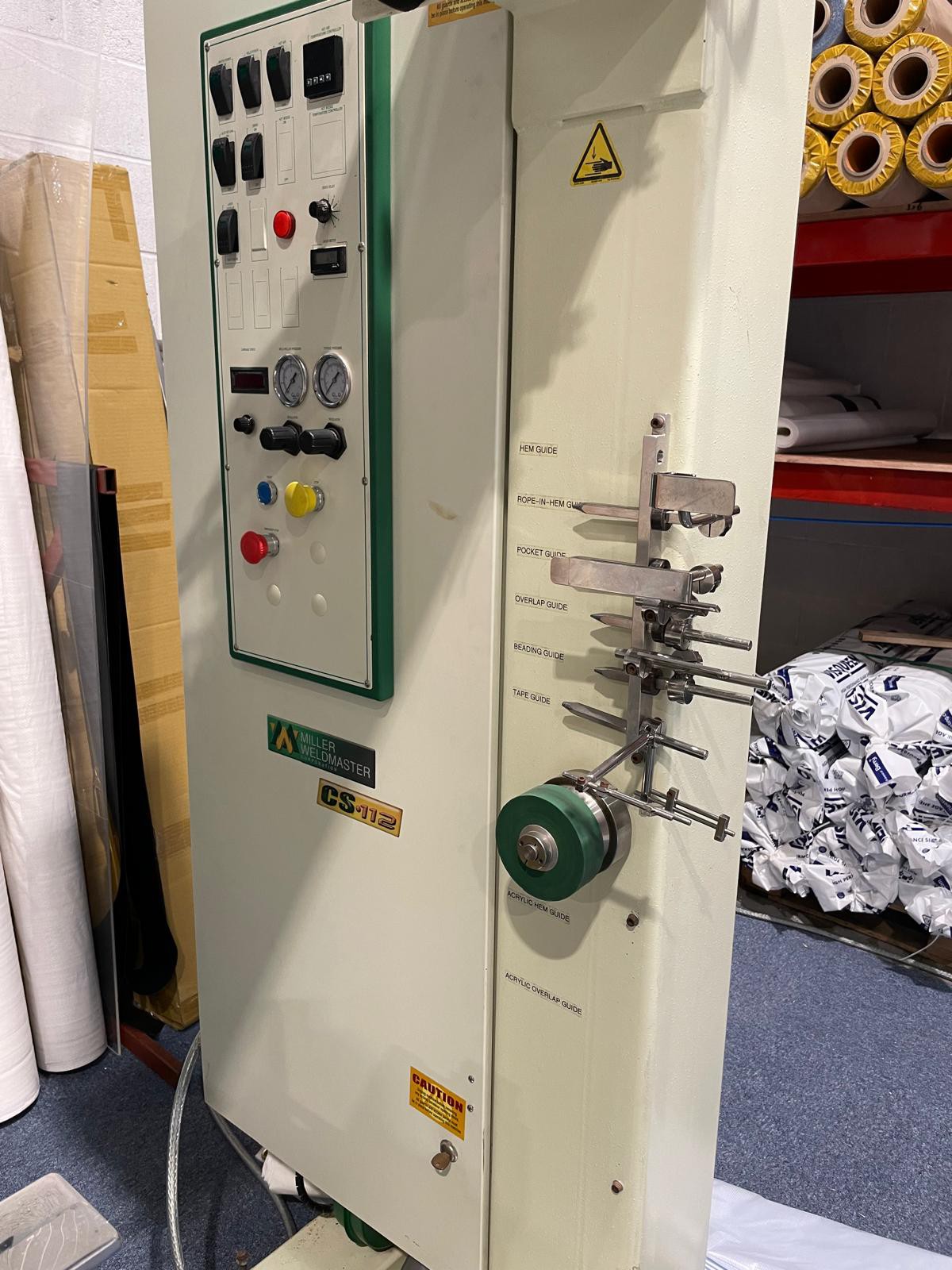

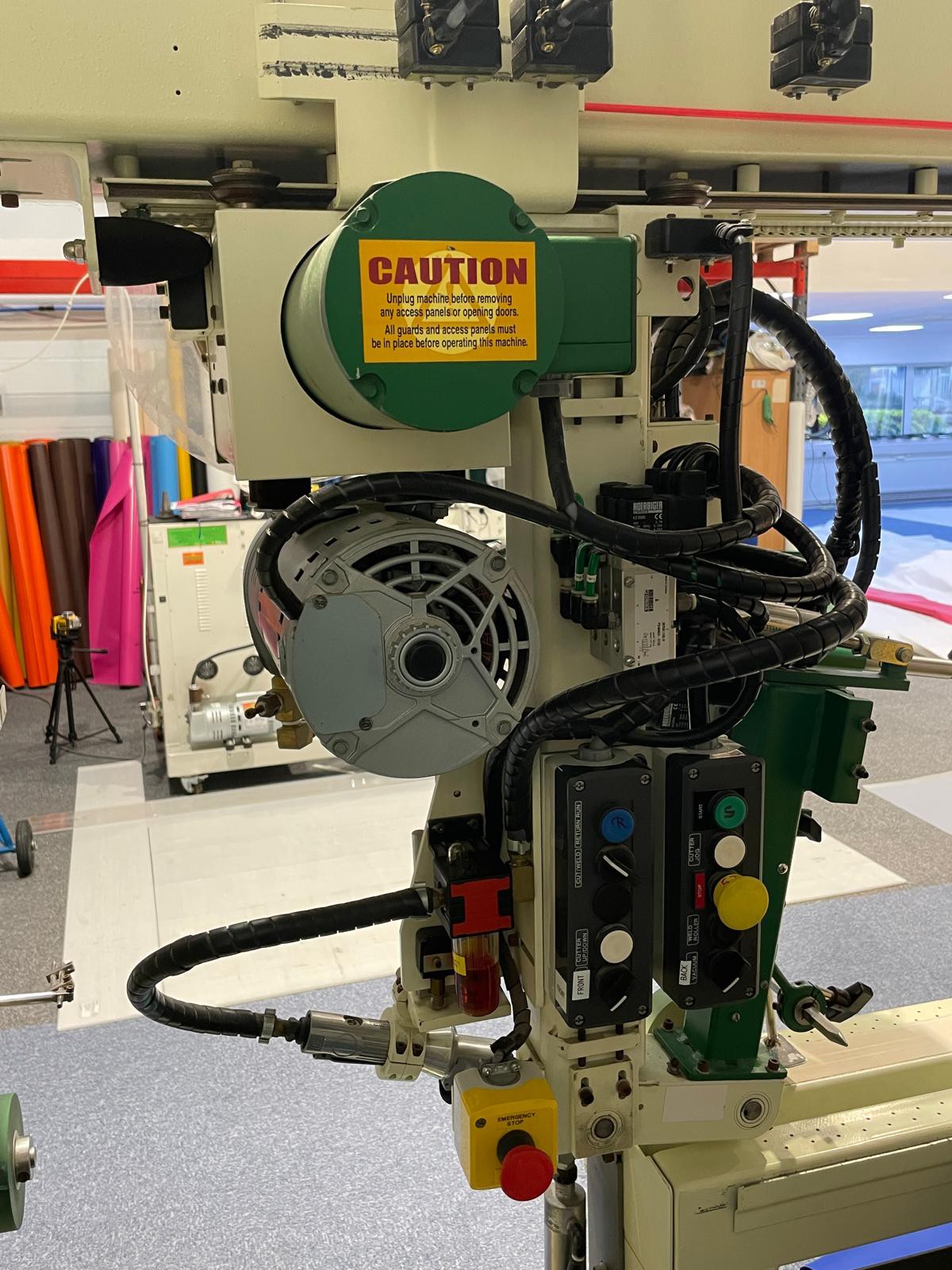

Miller Weldmaster CS.112 Hot Air Gantry Welder - Hertfordshire

Description

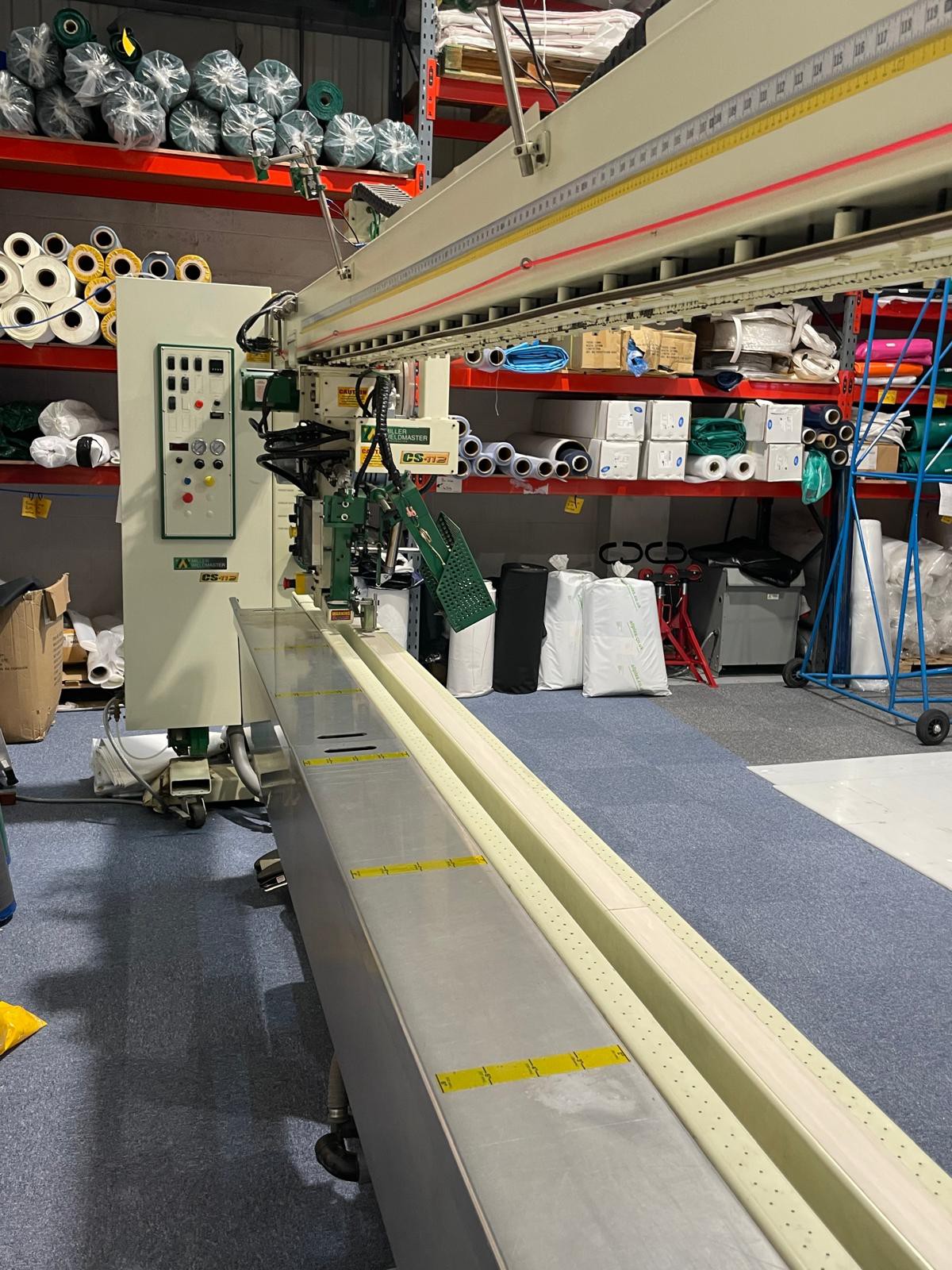

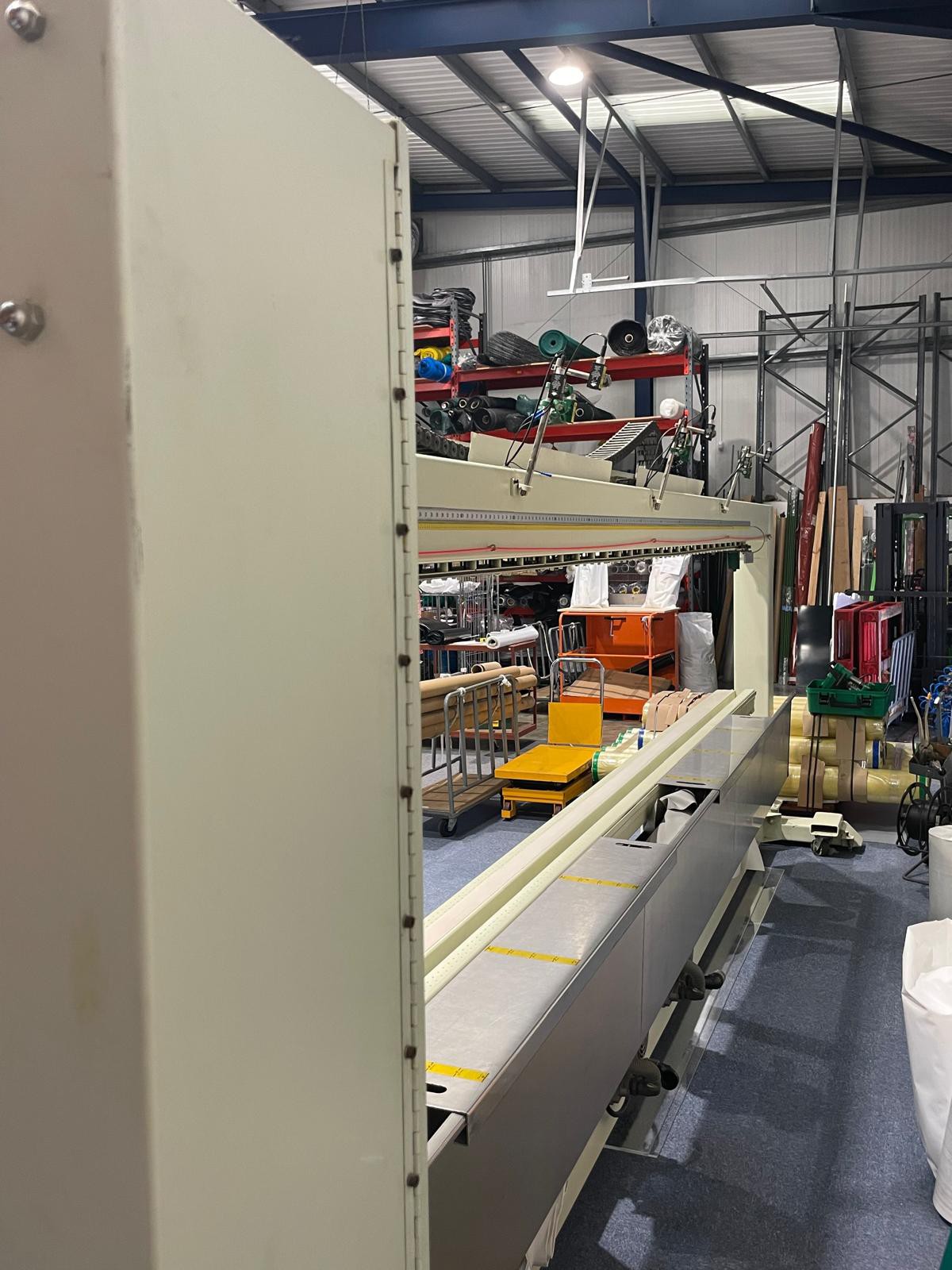

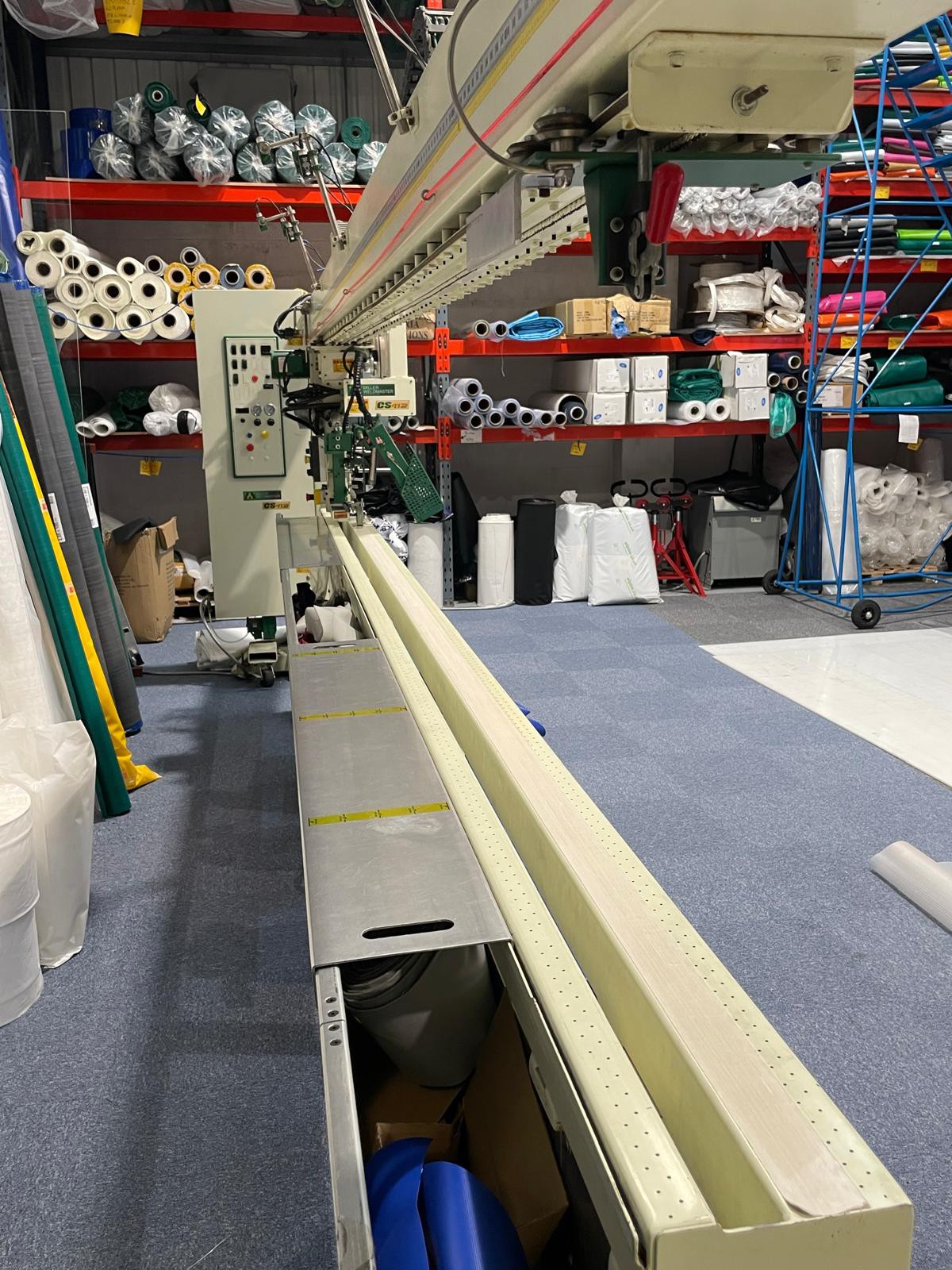

450cm long gantry track welder.

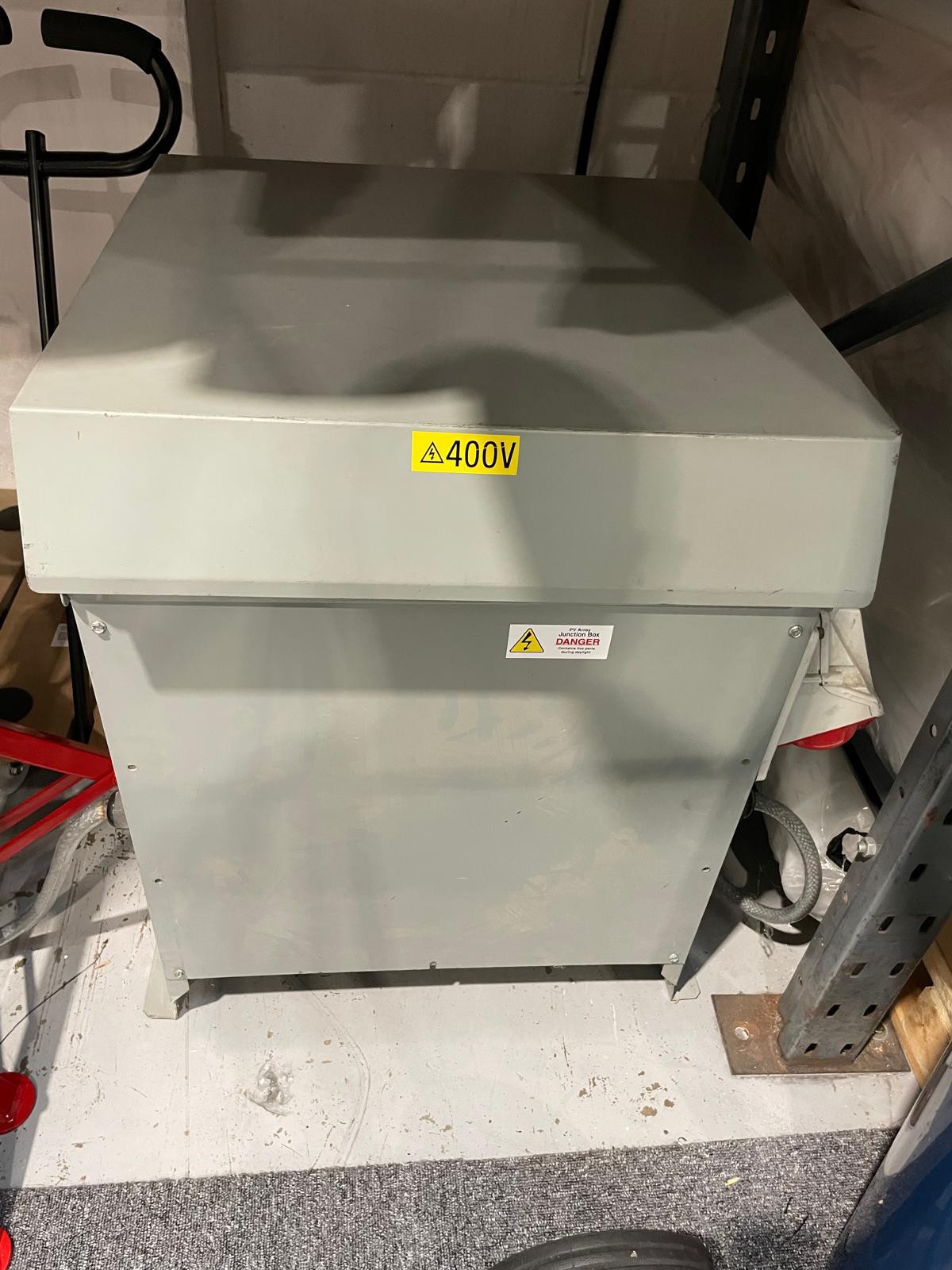

3 phase complete with dedicated transformer.

Made in 2006

Less than 1000 hours

Use in fully working condition.

S/n 0906.1722

It comes with a large range of tools and has been used for a market that never really took off with.

IT is surplus and too large to just sit there for the odd job.

Very genuine reason for sale, you are welcome to visit and see it working.

Cost over £60,000 new

Manufactures Information

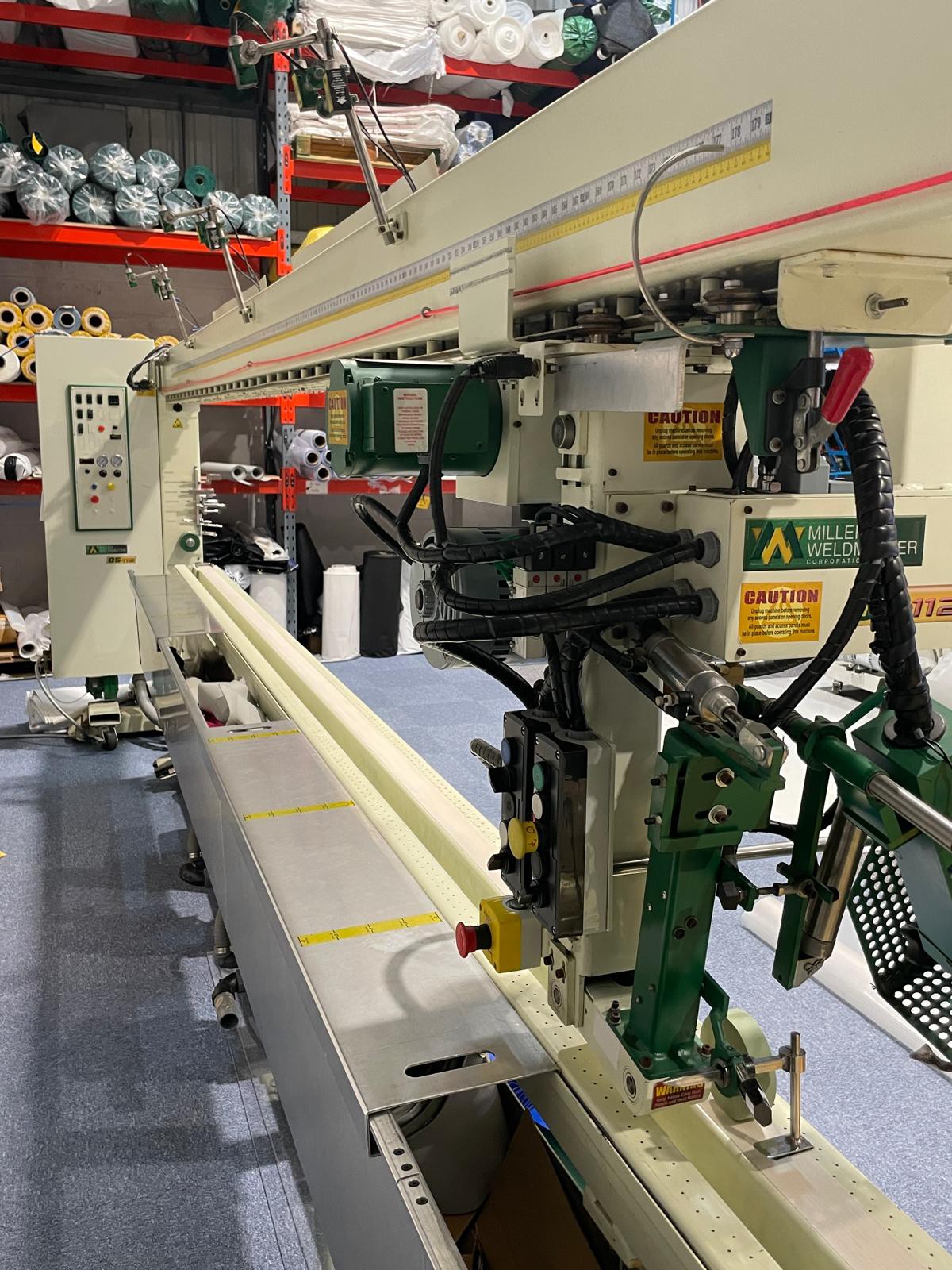

The 112 is a rotary hot air welding machine intended to heat-seal weldable thermal plastics such as:

Non-woven polypropylene
Vinyl (PVC) laminated fabrics
Vinyl (PVC) coated fabrics
Vinyl (PVC) films
Polyurethane (PU) coated fabrics
Polyurethane (PU) films
Polypropylene (PP) coated fabrics
Polyethylene (PE) Thermoplastic
Rubber (TPR) film Thermoplastic
Rubber (TPR) fabrics
Rigid Extruded Products

Principals of Heat Sealing

Hot Air

The heat required for the welding operation is created electrically by two heating element located inside the heat element housing. The hot air temperature ranges from 100 to 1350 Degrees Fahrenheit or 25 to 730 Degrees Celsius.

Speed

The Speed of the Weld Rollers determines the amount of time the heat is applied to the material being welded. The slower the speed setting, the more the material will be heated. The faster the speed setting, the less the material will be heated. To achieve the best weld, a minimal amount of heat should be applied to the material while still achieving a full weld. Too much heat will cause distortion of the material; while not enough heat will prevent the material from welding.

Pressure

The pressure of the weld roller is the final step when creating a weld. The pressure of the weld roller compresses the heated material together completing the welding process.

Summary

When heat sealing, the correct combination of heat, speed, and pressure will allow you to achieve a properly welded seam.

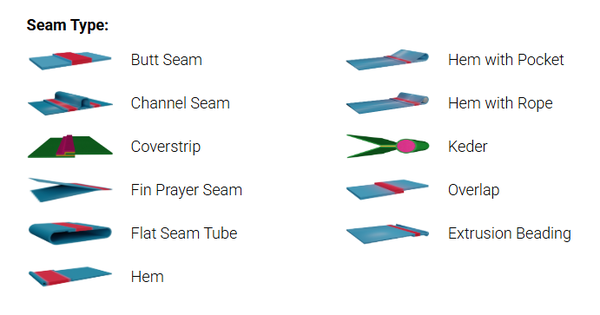

Types of weld

Hem weld
Hem with a rope
Overlap
Pocket weld
Welding webbings or tapes
Butt seam
Keder
Flat seam tubes

Ideal to make

Aerospace
Athletic Mats
Awnings
Banners
Billboards
Boat and vehicle cover
Building and scaffolding sheeting
Clear Span Buildings
Curtains - Agriculture
Curtains - Gymnasium
Curtains - Truck Side
Crop netting
Roller Doors
Mattresses
Pergolas
Pool Covers
Pond liners
Pools
Screens
Shades/Tension Structure
Shelters Structures
Skip and container covers
Signs
Tarpaulins/Covers
Trailer covers
Tents

More information

Miller Weldmaster 112 extreme product info and videos

Delivery notes

We are based in Letchworth, Hertfordshire and would prefer collection however we could arrange delivery within the UK mainland, cost would have to be calculated when details of delivery location are confirmed.
